HP Engage Flex Pro-C-G2

  • High-end

  • Replaces HP RP5


Main characteristics

I/O & Connectivity

Options

Bundled & included in the box

  • Build-to-order configuration for retail and hospitality

  • Color & style: black, compact case, no optical disk drive

  • Intel i5 CPU, 8th generation, i5-8500 (6-Core, 3.0Ghz, 9MB L3, vPro)

  • SSD: 256GB NVMe 2280

  • RAM: 8GB DDR4 DIMM (4 slots, 2 used with 2x 4GB dual-channel)

  • Windows 10 IoT for Enterprise LTSC 2021

Internal expansion slots:

  • PCIe v3.0 x16 (25W max) low profile: 1x

  • PCIe v3.0 x16 (wired as x4) (25W max) low profile: 1x

  • PCIe v3.0 x4 (wired as x2) (10W max) low profile: 2x

  • Storage: M.2 NVMe: 2 (total), 1 (free)

  • Storage: SATA 2.5": 2 (total), 2 (free)

  • DisplayPort: 1x

  • HDMI: 1x

  • VGA: 1x

  • RJ45 gigabit: 1x

  • USB3.0 / 3.1: 3x

  • USB2.0: 2x

  • Powered USB (USB2.0 + 24V): 1x

  • Powered USB (USB2.0 + 12V): 3x

  • Serial / COM 9-pin port: 4x

  • Power supply connector

  • Cash drawer connection RJ12 (not supported on Recreatex, cash drawer is via Epson receipt printer)

  • PS/2 Combo port for mouse or keyboard with PS/2 connection

  • Care pack 5y NBD onsite

  • Computer

  • Power cable "EU" plug

  • HP warranty: 3/3/3 Next Business Day onsite

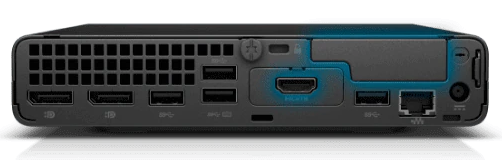

HP Engage Flex Mini

  • Administrative desktop and/or Kiosk computer


Main characteristics

I/O & Connectivity

Options

Bundled & included in the box

  • Build-to-order configuration for retail and hospitality

  • Color & style: black, USDT/USFF (Ultra Slim DeskTop / Form Factor), no optical disk drive

  • Intel i5 CPU, 10th generation, i5-10500T (6-Core, 2.3Ghz, 12MB L3, vPro)

  • SSD: 256GB NVMe 2280

  • RAM: 8GB DDR4 SODIMM

  • Windows 10 IoT for Enterprise LTSC 2021

Internal expansion slots:

  • Storage: M.2 NVMe: 2 (total), 1 (free)

  • Storage: SATA 2.5": 1 (free)

  • DisplayPort: 2x

  • VGA: 1x

    max. displays simultaneously: 2 (DP & VGA can be mixed)

  • USB-C (USB 3.2 Gen 2, data only*, front panel): 1x

  • RJ45 gigabit: x1

  • USB3.0: x4

  • USB2.0: x2

  • Powered USB (USB2.0 + 24V): -

  • Powered USB (USB2.0 + 12V): -

  • Serial / COM 9-pin port: -

  • Power supply connector

(*) No explicit "DisplayPort-over-USB" documented by HP, used for data devices only.

  • Care pack 5y NBD onsite

If a COM / Serial port is required, choose:

  • Single COM / Serial port

  • 2x COM (dual COM) / Serial port

If a 6x USB connection is not sufficient, add a USB hub:

  • USB Hub 7-port with external power supply "EU" plug

  • Computer

  • External power adapter

  • Power cable "EU" plug

  • HP warranty: 3/3/3 Next Business Day onsite

Other devices

HP RP5

high-end, model 5810


  • Available: NO

  • Supported: YES
