System requirements

Card readers

Supported devices
Contactless reader: MIFARE

Device

Technology

Interface

Use in Recreatex

Additional info


  • MIFARE - high-frequency (13.56Mhz) technology, in PVC cards and silicone wristbands

  • NFC

  • Supports different coding methods: UID/serial number, "Gantner MIFARE Scheme" and several 3rd-party encoding schemes

  • Behaves as a keyboard (supports azerty, qwerty, qwertz)

  • USB2.0 (cable to connect to POS computer system)

  • Processing membership (linking, validating,...)

  • Employee login on Recreatex cash desk

  • Supported card formats:

    • MIFARE Classic

    • MIFARE UltraLight

    • DESFire

    • NFC

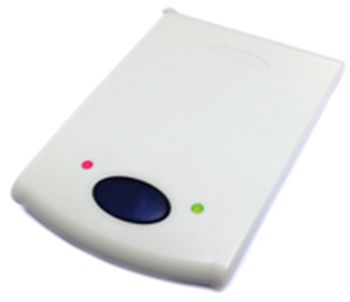

Contactless reader: Proximity 39-bytes

Device

Technology

Interface

Use in Recreatex

Additional info


  • Stand-alone RFID reader

  • Card technology: Proximity, 125kHz

  • The USB signal is a USB-to-Serial conversion (COM /Serial device)

  • The device is set up to decode cards of card type "Prox 39-bytes"

  • USB2.0 (cable to connect to POS computer system)

  • Processing membership (linking, validating,...)

  • Employee login on Recreatex cash desk

  • Requires set up for DriverNG

  • 1-year carry-in warranty

eID reader for Belgian identity cards: OneSpan Digipass 905

Device

Technology

Interface

Use in Recreatex

Additional info


  • Contact reader

  • USB2.0 (cable to connect to POS computer system)

  • Scanning eID cards to input customer data in Recreatex - Belgium only

Magnetic stripe reader: MagTek

Device

Technology

Interface

Use in Recreatex

Additional info


  • Stand-alone MSR reader (Magnetic Stripe Reader)

  • USB2.0 (cable to connect to POS computer system)

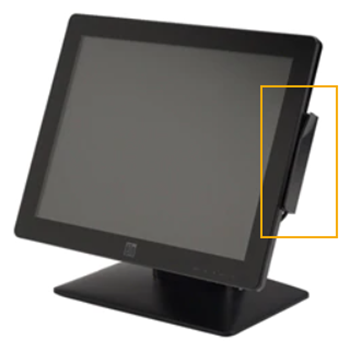

Magnetic stripe reader for Elo screen

Device

Technology

Interface

Use in Recreatex

Additional info


  • MSR reader (Magnetic Stripe Reader)

  • Mounts on the right side of the Elo 1717L touch screen

  • USB2.0 (cable to connect to POS computer system)

Other devices

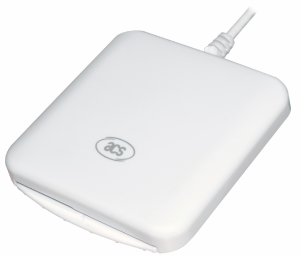

Zetes ACR38U Smart Card Reader


Low-frequency reader: Dobit USB RFID


  • Available: NO

  • Supported: YES
